Clips

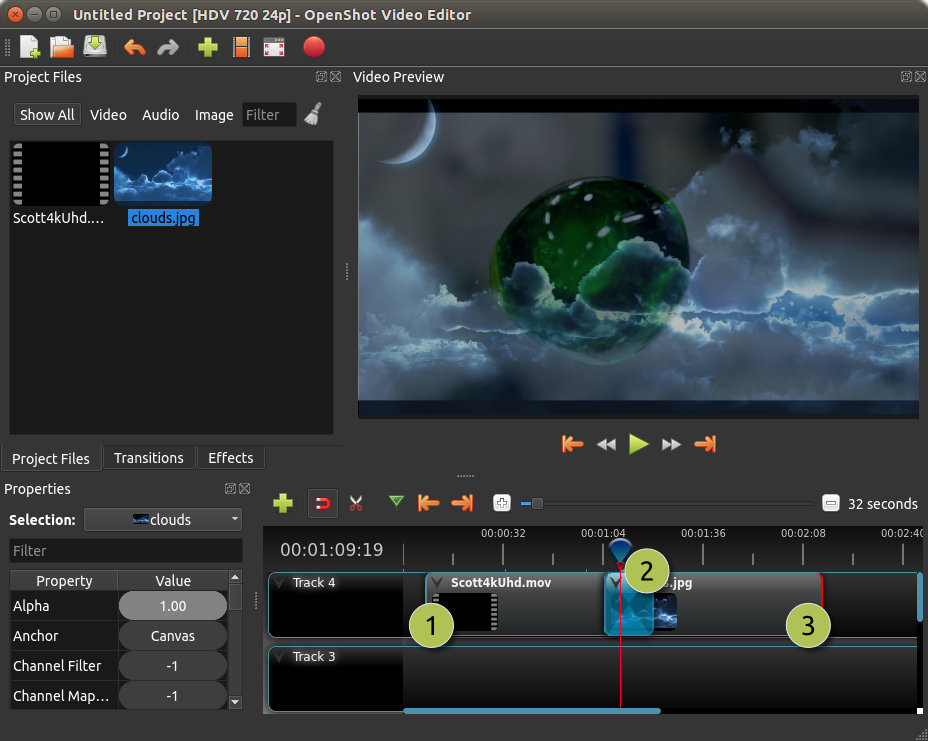

Each media file you add to the OpenShot timeline is called a clip, and is visualized by a dark, rounded rectangle (as seen in the screenshot below). A clip has a large number of properties, which affects how the clip is rendered and composited, such as scale, location, rotation, and alpha. These properties can also be animated over time, and when combined together, can create some amazing effects.

Overview

_images/clip-overview.jpg

#

Name

Description

1

Clip 1

A video clip

2

Transition

A gradual fade transition between the 2 clips

3

Clip 2

An image clip

Cutting & Slicing

OpenShot has many easy ways to adjust the start and end positions of a clip (otherwise known as cutting). The most common method is simply grabbing the left (or right) edge of the clip and dragging. Here is a list of methods for cutting clips in OpenShot:

Name

Description

Slice

When the play-head (i.e. red playback line) is overlapping a clip, right click on the clip, and choose Slice

Slice All

When the play-head is overlapping many clips, right click on the play-head, and choose Slice All (it will cut all intersecting clips)

Resizing Edge

Mouse over the edge of a clip, and resize the edge

Split Dialog

Right click on a file, and choose Split Clip. A dialog will appear which allows for creating lots of small cuts in a single video file.

Razor Tool

The razor tool cuts a clip wherever you click, so be careful. Easy and dangerous.

Keep in mind that all of the above cutting methods also have Keyboard Shortcuts, to save even more time.

Preset Menu

OpenShot has tons of great preset animations and clip properties, such as fading, sliding, zooming, etc… These presets can be accessed by right clicking on a clip.

_images/clip-presets.jpg

Name

Description

Fade

Fade in or out a clip (often easier than using a transition)

Animate

Zoom and slide a clip

Rotate

Rotate or flip a video

Layout

Make a video smaller or larger, and snap to any corner

Time

Reverse and speed up or slow down video

Volume

Fade in or out the volume for a clip

Separate Audio

Create a clip for each audio track

Slice

Cut the clip at the play-head position

Transform

Enable transform mode

Display

Show waveform or thumbnail for a clip

Properties

Show the properties panel for a clip

Copy / Paste

Copy and paste key frames or duplicate an entire clip (with all key frames)

Remove Clip

Remove a clip from the timeline

Transform

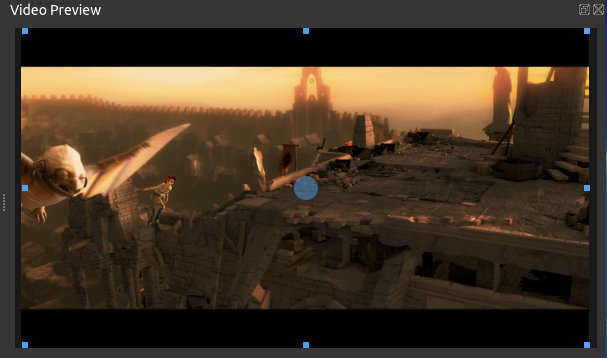

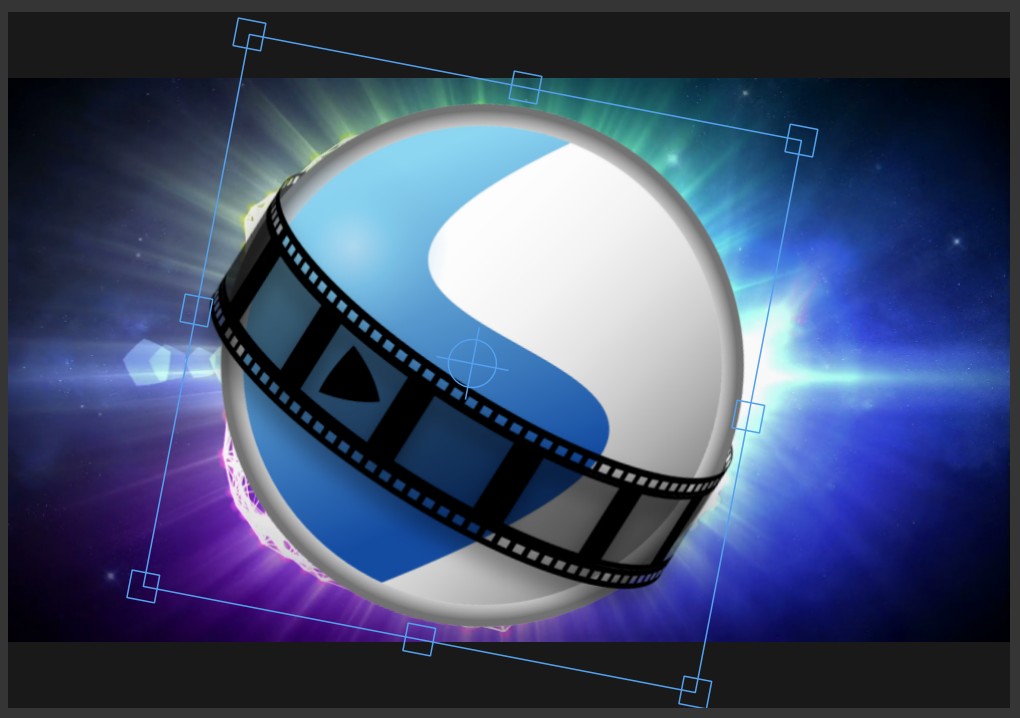

To quickly adjust the location and scale of a clip, select a clip on the timeline, right click and choose Transform. Grab any of the small blue handles to adjust scale, and grab the middle circle to move the image. Note: Pay close attention to where the play-head (i.e. red playback line) is. Key frames are automatically created at the current playback position, to help create animations.

_images/clip-transform.jpg

For more info on key frames and animation, see Animation.

Effects

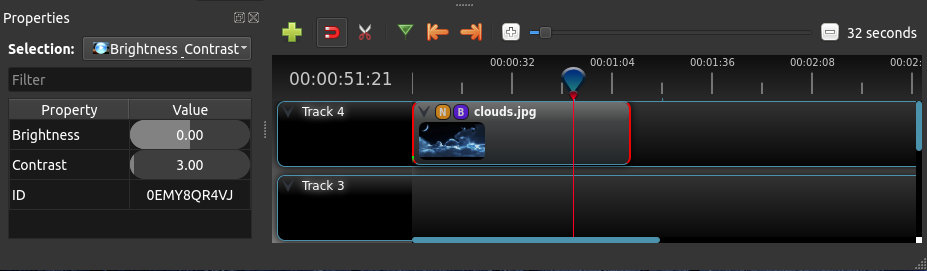

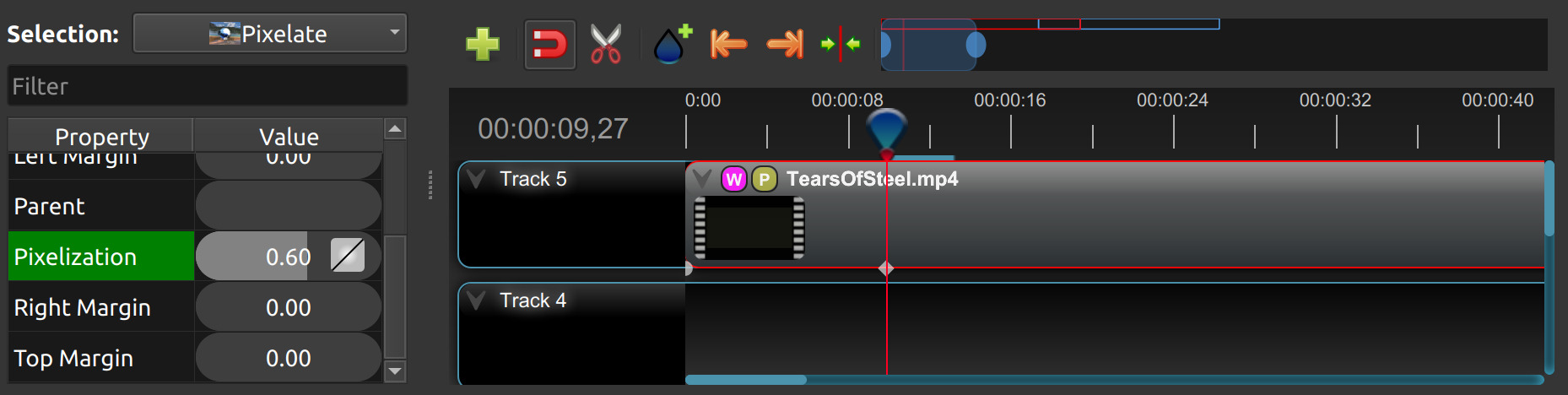

In addition to the many clip properties which can be animated and adjusted, you can also drop an effect directly onto a clip. Each effect is represented by a small letter icon. Clicking the effect icon will populate the properties of that effect, and allow you to edit (and animate) them.

_images/clip-effects.jpg

Properties

Below is a list of clip properties which can be edited, and in most cases, animated over time. To view a clip’s properties, right click and choose Properties. The property editor will appear, where you can change these properties. Note: Pay close attention to where the play-head (i.e. red playback line) is. Key frames are automatically created at the current playback position, to help create animations.

Name

Description

Gravity Type

The gravity of a clip determines where it snaps to it’s parent

Scale Type

The scale determines how a clip should be resized to fit it’s parent

Frame Display Type

The format to display the frame number (if any)

Scale X

Curve representing the horizontal scaling in percent (0 to 1)

Scale Y

Curve representing the vertical scaling in percent (0 to 1)

Location X

Curve representing the relative X position in percent based on the gravity (-1 to 1)

Location Y

Curve representing the relative Y position in percent based on the gravity (-1 to 1)

Rotation

Curve representing the rotation (0 to 360)

Alpha

Curve representing the alpha (1 to 0)

Time

Curve representing the frames over time to play (used for speed and direction of video)

Volume

Curve representing the volume (0 to 1)

Shear X

Curve representing X shear angle in degrees (-45.0=left, 45.0=right)

Shear Y

Curve representing Y shear angle in degrees (-45.0=down, 45.0=up)

Channel Filter

A number representing an audio channel to filter (clears all other channels)

Channel Mapping

A number representing an audio channel to output (only works when filtering a channel)

Has Audio

An optional override to determine if this clip has audio (-1=undefined, 0=no, 1=yes)

Has Video

An optional override to determine if this clip has video (-1=undefined, 0=no, 1=yes)

Waveform

Should a waveform be used instead of the clip’s image

Waveform Color

Curve representing the color of the audio wave form

For more info on key frames and animation, see Animation.
